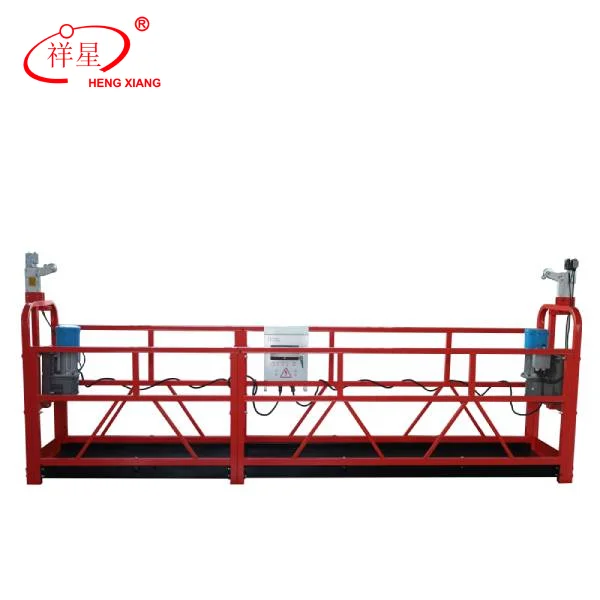

Electric suspended platform ZLP1000 is also called electric cradle. ZLP1000 suspended platform has higher rated capacity than other models. Suspended platform is a type of suspended access equipment, which is temporarily installed and easy to operate.
In some cases, hanging platform saves more time and cost than traditional scaffolding, and is safer and more convenient, such as window cleaning of high-rise building, maintenance for vertical vessels and so on.
Working principle
The suspended cradles are driven by two electric hoists and steel wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Specifications of electric suspended platform ZLP1000
| MODEL NUMBER | ZLP1000 |
| Rated Capacity(kg) | 1000 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 2.2×2 |
| Hoist Model | LTD100 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform
L x W x H(mm) |
7500x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1250 |
| Steel Suspension Platform weight(kg) | 700 |
| Aluminum Suspension Platform weight(kg) | 590 |
ZLP1000 suspended platform parts
- LTD Series Hoist
- LSB30 Safety Lock
- Electric Control Box
- Steel wire rope
- Working platform
- Suspension Mechanism
Safety system
To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices
- Service brake incorporated in the LTD hoist
- Two fall arrest devices acting on the safety wire ropes
- Two upper limit switches
- No power descent in case of power failure
- Emergency stop
- Phase controller. (Option)
Features of ZLP1000 suspended cradle
1.The length of platform can be adjusted within 1m-10m.
2.The working height can be adjusted with customers’ need.
3.The voltage can be adjusted with customer’s requirement.
4.Available in 3 materials : Aluminum alloy, steel painted, steel with dipping zinc or galvanized
Application

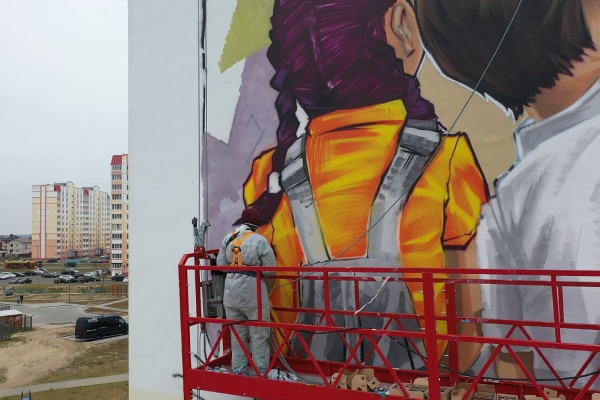

ZLP1000 suspended platform cradle is a suitable high-rise working lift device, which is widely used for painting and decorating, refurbishing, repairs, windows cleaning of high-rise building, curtain wall installation, large tanks, bridges, dams and other construction operations.
