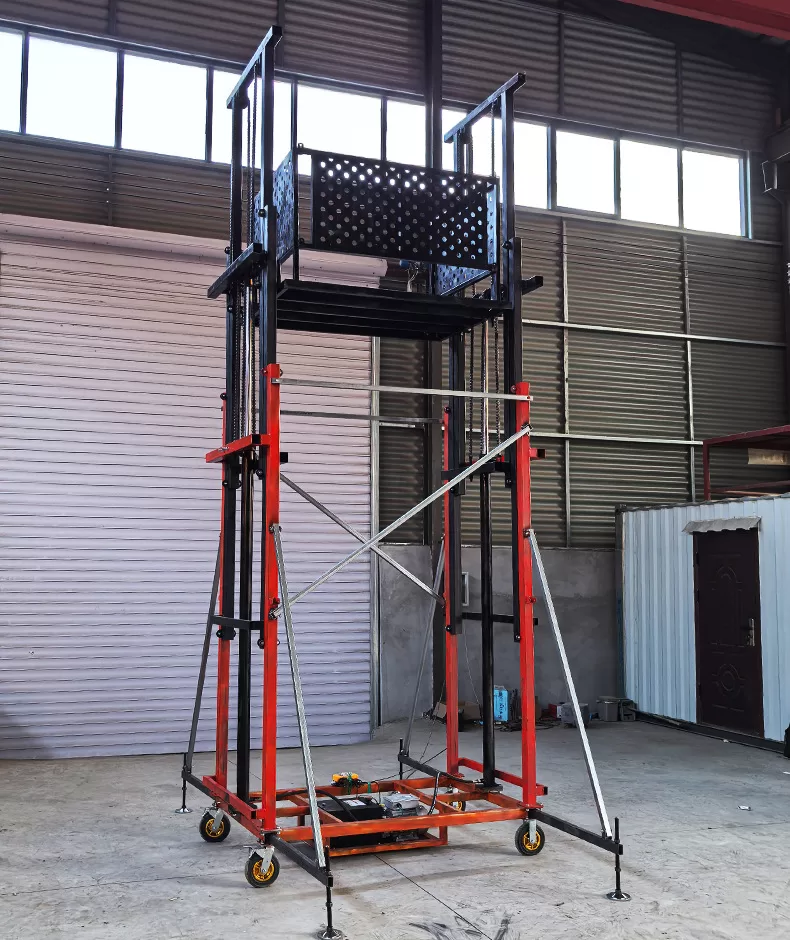

The hydraulic electric scaffolding lift platform is the latest upgraded model. Using more stable hydraulic lifting and chains to improve the safety and stability of the scaffolding lift.
Hydraulic electric scaffolding lift specifications
| Lifting Height | Frame | Max. Capacity | Size | Work Platform | Weight |
| 3m | 2-stage | 800kg | 1.95*1.15*2.3m | 1.5*1m | 360kg |
| 4m | 2-stage | 800kg | 1.95*1.15*2.8m | 1.5*1m | 400kg |
| 5m | 3-stage | 800kg | 1.95*1.15*2.5m | 1.5*1m | 450kg |
| 6m | 3-stage | 800kg | 1.95*1.15*2.9m | 1.5*1m | 473kg |
| 7m | 3-stage | 800kg | 1.95*1.15*3.2m | 1.5*1m | 500kg |
| 8m | 3-stage | 800kg | 1.95*1.15*3.7m | 1.5*1m | 550kg |
| 9m | 4-stage | 800kg | 1.95*1.16*3.4m | 1.5*1m | 600kg |
| 10m | 4-stage | 800kg | 1.95*1.15*3.7m | 1.5*1m | 630kg |
| 12m | 4-stage | 800kg | 1.95*1.15*3.9m | 1.5*1m | 660kg |
Features of Hydraulic lifting scaffold

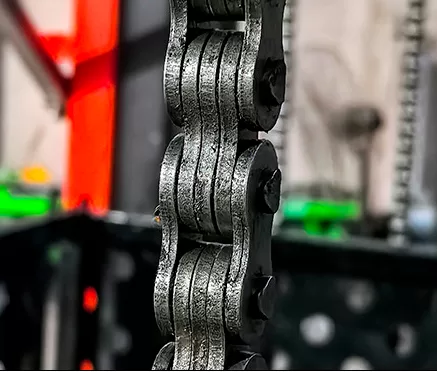

- High-strength high-quality chain: can withstand greater tension and impact, suitable for heavy-load occasions, and can adapt to a variety of different working environments, such as high and low temperatures, humidity, corrosion, etc. The chain has a simple structure and is easy to maintain and replace.

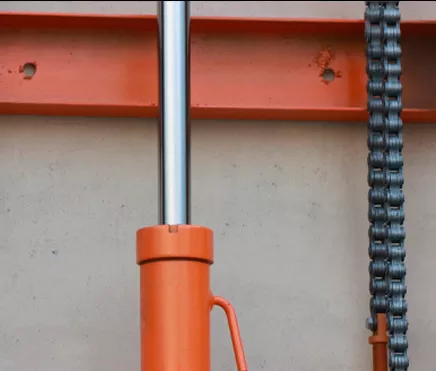

- The lift uses double hydraulic cylinders with strong load-bearing capacity, smoother lifting and higher safety.

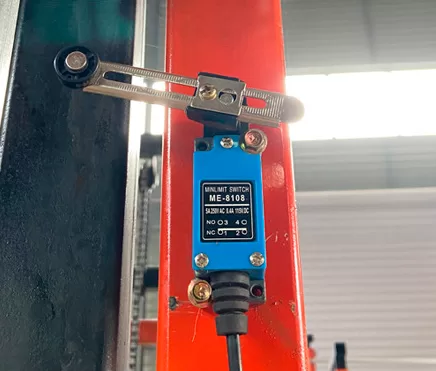

- The limiter effectively protects the safety of equipment and personnel and avoids accidents caused by exceeding the travel limit. Reasonable setting of the upper limiter can also improve the operating stability and reliability of the equipment and extend the service life of the equipment.

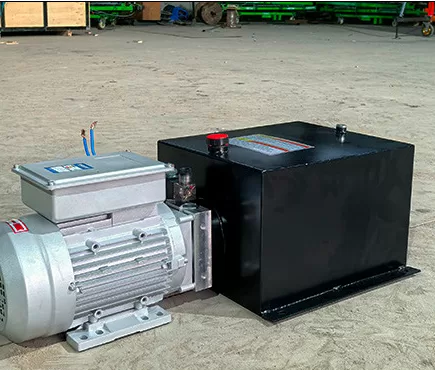

- The hydraulic lift platform uses a 2.2kw power supply, and the voltage can be selected from 220v/110v and 380v explosion-proof motors.
Package and Delivery
Why choose Hengxiang Electric Scaffolding
- Size and color can be customized
- Voltage selectable: 110v/220v/380v
- Source factory, authentic and reliable
- Professional after-sales service, online technical support
