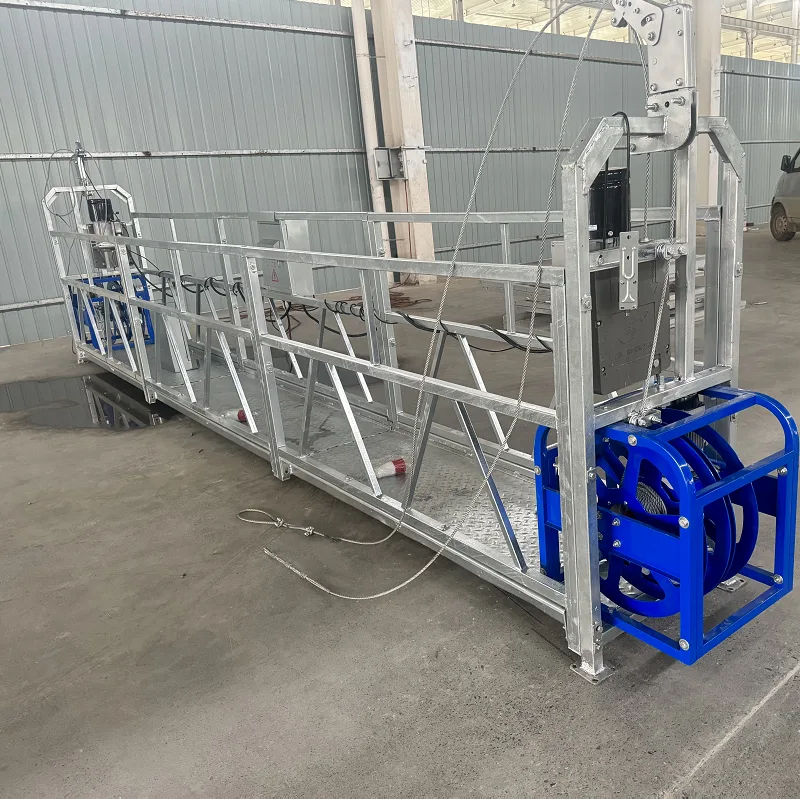

Motorized gondola is usually used for high-rise building facades maintenance. The motorized gondola ZLP1000 is equipped with two LTD100 hoists. Its structure is easy to operate and can be make-up and break-out according to the actual need. The electric suspended platforms can also be applied to elevator installation, large tanks, bridges, dams and other engineering operations.
| MODEL NUMBER | ZLP1000 |
| Rated Capacity(kg) | 1000 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 2.2×2 |
| Hoist Model | LTD100 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform L x W x H(mm) | 7500×690×1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1250 |
| Steel Suspension Platform weight(kg) | 700 |
| Aluminum Suspension Platform weight(kg) | 590 |

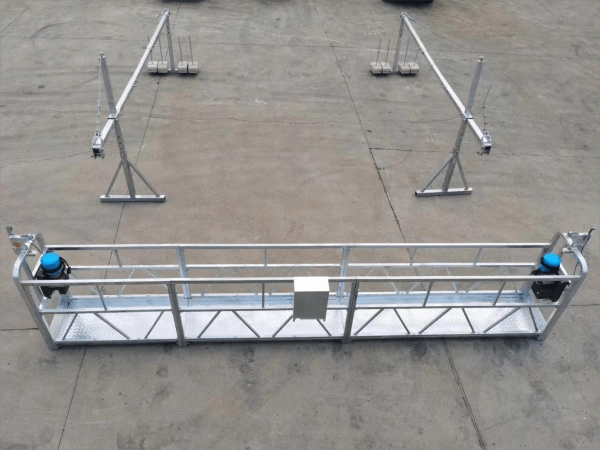

The electric suspended cradle consists of working platform, hoist, safety lock, suspension mechanism or parapet clamp, Electric control box, and steel wire ropes etc..
Hebei Hengxiang engineering materials co., ltd is one of the leading suspended platform manufacturers and suppliers in China. We can supply ZLP 250/500/630/800/1000 rope suspended platform, and non-standard motorized gondola lift. Our products are now exported to all over the world, including the Philippines, Thailand, Indonesia, India, Russia, USA, Peru, Australia, Saudi Arabia, Qatar and so on.
