Parapet clamp gondola, cost-effective ZLP800 suspended platform

Parapet clamp gondola(or suspended platform), as the name suggests, is a suspended platform using the parapet clamp as the suspension mechanism. The cost-effective ZLP800 suspended platform is one of our hot-selling gondolas.

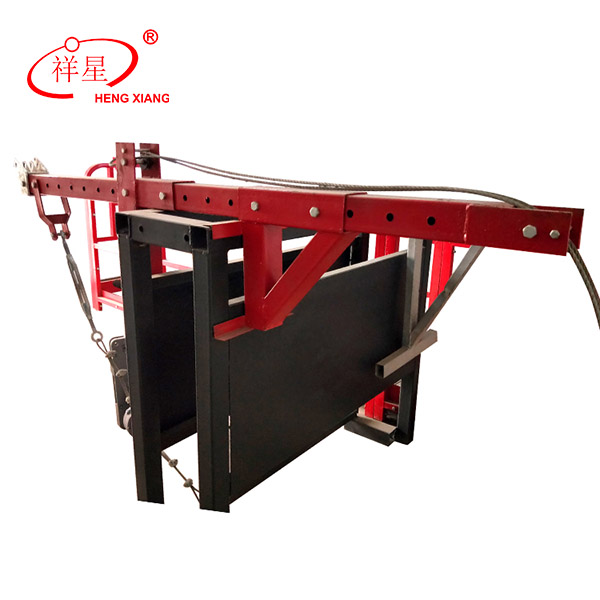

The parapet clamp is a new type of construction gondola support frame, the main feature is no counterweight. The tail of the horizontal arm rod using wire rope or basket bolt directly in the embedded anchor ring or tied to the structural beam, good safety performance, does not affect the roof operation.

The support frame has high strength, is lightweight, has convenient installation, easy process control, and convenient shift. Generally applicable to concrete roof parapet is high or the external wall needs to be inserted into the operation in advance.

Product specifications

1. Construction gondola ZLP800

2. Parapet clamp

• The front beam overhang can be adjustable 600mm~1000mm.
• The clamp thickness is 200mm~600mm.
• The load can be as weight as 800kg

* Note: The parapet clamp can be customized according to the needs of customers

Main components of parapet clamp gondola

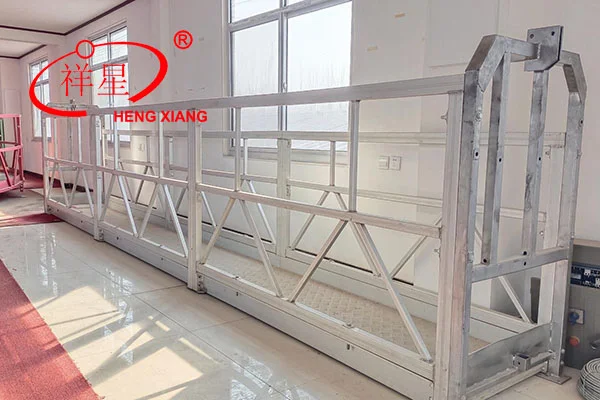

1. Working platform: Steel and Aluminum Alloy optional, Painted and Hot Galvanized surface treatment optional.
2. Parapet clamp: Painted and Hot Galvanized surface treatment optional;
3. Hoist: with a famous brand of high-quality LTD series hoist, large braking torque. High precision, long services life.
4. Electrical Control Box: Scientific design, Waterproof and anti-collision, the inner parts with brand CHINT or SCHNEIDER;
5.  Safety Rope: diameter 18mm, breaking force 47250N;
6.  Safety lock: high intensity, if tilt happened which can be locked immediately, 100% qualified. The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear-resistant, long services life, safety and reliability.
7.  Steel Wire Rope : diameter 8.3mm, 8.6mm,9.1mm optional;
8.  Cable: natural weather resistance rubber;
9.  Counterweight: Concrete, Concrete with steel cover, Iron-cast optional.

Parapet clamp gondola features

1. The length of the electric suspended platform can be adjusted within 1m-10m.
2. The working height can be adjusted with customers’ needs.
3. The voltage can be adjusted with the customer’s requirement.
4. Materials 3 Types:1)Aluminum alloy, 2)steel, 3)steel with dipping zinc or galvanized
5. Convenient and reliable electric control system
6. Reasonable designed structure and Attractive appearance

Applications of ZLP800 suspended platform

ZLP800 suspended platforms are widely recognized in high-rise operations such as exterior wall construction, curtain wall installation, window cleaning, wall painting, thermal insulation construction, and maintenance and cleaning of exterior walls of high-rise multi-story buildings. The electric building gondola can be used for the construction and maintenance of large bridges and large tanks, as well as dams and other projects.
