Product Name: Swing stage scaffolding/swing stage scaffold
Model: ZLP 630, ZLP 800, ZLP 1000
Capacity: 630/800/1000 kg
Certificate: ISO & CE & EAC
Customization available
Minimum Order Quantity: 1 Set
Factory direct and fast shipment
A swing stage scaffold is also known as two point suspended platform, which is ideal equipment for high-rise building facades access. ZLP 630 suspended scaffolding system is a common type in the market. For more details and price list, send your inquiry to our team, get a free catalog and the latest price today.
A swing stage scaffolding is also known as two point suspended platform or suspended scaffolding system, which is ideal equipment for building facades access. ZLP 630 suspended scaffolding system is a common type in the market, the ZLP 800 and ZLP 1000 are also popular models.

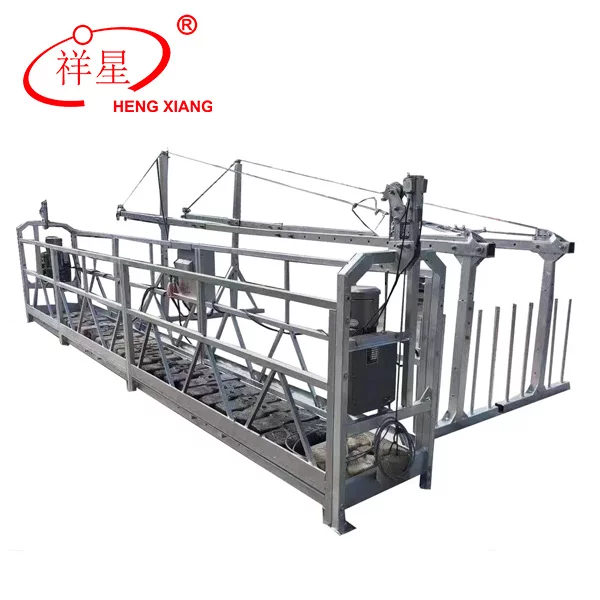

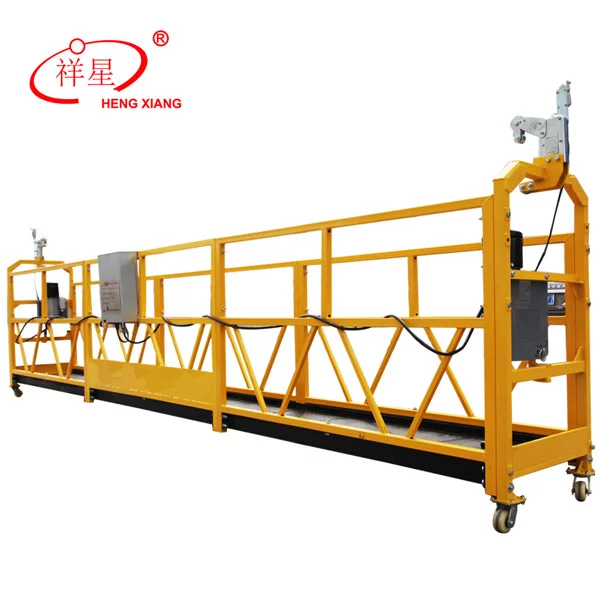

Hengxiang electric swing stage scaffold provides a safe, reliable and cost effective method for quick access to building facades, tanks, chimneys, stacks and other structures not normally accessible from the ground. The rope suspended platform can be customized by the different working sites.
A complete electric suspended scaffolding system consists of electric control box, traction hoist, safety lock, working platform, Anchor device(suspension mechanism or parapet clamp), steel wire rope, safety rope and other components. The following is the construction of some important swing stage parts.
First class electrical components
LTD series swing stage hoist for sale with famous brand and high quality.
Anti-Tilt type for end stirrup platform, stainless steel lock core, longer service life.
Length can be adjustable, aluminum alloy or steel(painting or galvanized optional)

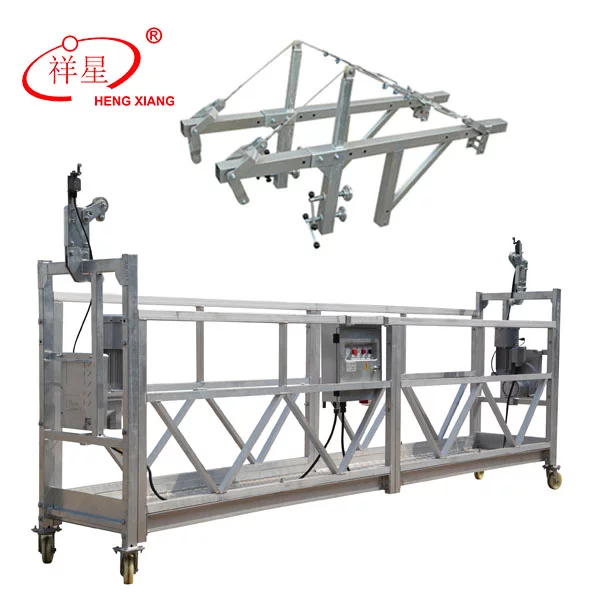

Suspension mechanism or parapet clamp(used on parapet wall), scientific design, strong and reliable, easy to install.
Quality rope, good price.
| MODEL NUMBER | ZLP630 |
| Rated Capacity(kg) | 630 |
| Lifting Speed(m/min) | 9-11 |
| Rated Power(KW) | 1.5×2 |
| Hoist Model | LTD63 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform L x W x H(mm) | 6000x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 800 |
| Steel Suspension Platform weight(kg) | 500 |
| Aluminum Suspension Platform weight(kg) | 340 |
The two point suspended scaffold systems are generally used in high-elevation applications.
Since the swing stage platform is high-altitude operation equipment, daily maintenance and safety inspection are very important. At the same time, the staff who use the suspended working platform need professional training. In addition, we will provide customers with swing stage setup videos and technical guidance
Recommended article: Suspended platform inspection checklist and safety operation regulations
Hebei Hengxiang Engineering Materials Co., LTD. is a manufacturer of gondola list and scaffolding systems in China. The factory was established in 2008, and can offer a wide range of suspended platforms, such as ZLP 630, ZLP 800, ZLP 1000 suspended platform, suspended chair for single person, circular suspended platform, L type suspended scaffolding, etc. The ZLP series suspended platforms with ISO, CE and EAC, are popular as high-rise building window washing scaffolding platform.
Except for building gondola, Hengxiang can also produce and export walk through scaffolding, ring-lock scaffolding, self climbing scaffolding system, electric scaffolding, and adjustable steel prop, etc. Buy scaffolding parts & accessories direct from the manufacturer & save. Fast shipment and professional services for you all the time.
The leader in electric suspended platforms, Hengxiang can produce and supply premium swing stage scaffold in a variety of lengths for multiple configurations. With an exceptional management team, highly specialized expertise, and outstanding technical and engineering capabilities, Hengxiang delivers professional, custom swing stage scaffolding solutions by customers’ demand.
Hebei Hengxiang Engineering Materials Co., Ltd is an integrated enterprise specializing in the research and development, production, installation, maintenance and leasing of Suspended Platform, Scaffolding, Container Houses.
