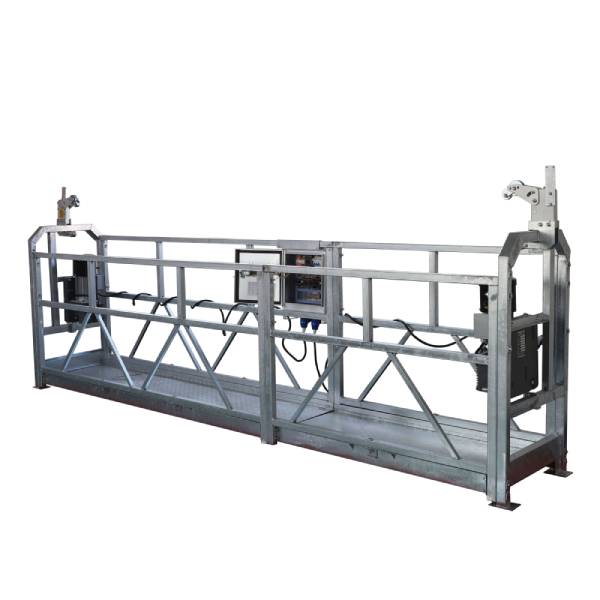

Hanging work platform ZLP800 aluminum alloy, also called ZLP800 suspended platform or electric cradle, is a kind of temporary installed aerial work lifting platform. With the hanging work platform, it’s easier and safer to work at height.
Aluminum alloy ZLP800 hanging work platform, also called ZLP800 suspended platform or electric cradle, is a kind of temporary installed aerial work lifting platform. With the hanging work platform, it’s easier and safer for workers to work at height.
Hengxiang ZLP800 hanging work platforms strictly follow the industry standards. Advanced production technology and strict testing process to ensure product quality and safety. ZLP800 aluminum alloy suspended platform produced by Hengxiang has high quality and competitive price.
| MODEL NUMBER | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
| Rated Capacity(kg) | 1000 | 800 | 630 | 500 |
| Lifting Speed(m/min) | 8-10 | 8-10 | 9-11 | 9-11 |
| Rated Power(KW) | 2.2×2 | 1.8×2 | 1.5×2 | 1.1×2 |
| Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 |
| Safety Lock Model | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 |
| Dimension of platform L x W x H(mm) | 7500x690x1180 | 7500x690x1180 | 6000x690x1180 | 5000x690x1180 |
| Suspension mechanism weight(kg) | 250 | 250 | 250 | 250 |
| Counterweight(kg) | 1250 | 1000 | 800 | 750 |
| Steel Suspension Platform weight(kg) | 700 | 600 | 500 | 400 |
| Aluminum Suspension Platform weight(kg) | 590 | 440 | 340 | 290 |
| Note: Suspended platform including hoist, safety lock, electric control panel. | ||||
1) Hoist: high precision, long services life. Unique anti-rope clamping device, when the rope is clamped, the alarming rings, the motor stops working, so that factor of safety is increased meantime, the maintenance cost of the hoist is reduced.
2) Safety lock: The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear-resistant, long services life, safe and reliable.
3) Electric control panel: Perfect circuit design, including leakage protection, current overload protection, emergency braking. Operate simply, safe and reliable.
4) Cable: Using National Standard cable 2.5*3+1.5*2. The using life is longer than Non-National Standard cable.
5) Simple structure: easy to assemble and disassemble
6) The length of the working platform can be adjusted within 1m-10m.
7) The working height can be adjusted with customers’ needs.
8) The voltage can be adjusted with the customers’ requirement.
9) Materials 3 Types: Aluminum alloy, steel (with dipping zinc or galvanized)
The suspended work platform is driven by an electric hoist and steel wire rope, running against the building facade while the suspension mechanism (parapet clamp)was erected on buildings or structures.
As a high-rise working machinery, the ZLP800 aluminum hanging work platform is perfectly suitable for painting and decorating, refurbishing, jointing and repairs, windows cleaning of a high building, curtain wall installation, facade cleaning, or other works such as large tanks, bridges, dams, and other construction operations.
Our ZLP series suspended platform and related accessories have obtained ISO9001:2000 & CE certification. You can always be confident with our products.
Hebei Hengxiang Engineering Material Co., Ltd. is one of the leading suspended platform manufacturers, suppliers, and exporters in China. Our main products are high altitude electric suspended platforms, and accessories, e. g. safety lock, hoist, electric control panel, and so on.
We have a professional team to design and produce all the models of the ZLP suspend platform. At the same time, we can also customize non-standard gondolas according to customer needs. L shape suspended platform, circular suspended platform for chimney, suspended platform for dams, bridge suspended scaffolding are also our hot-sale products.
Our gondola lifts have been exported to more than 20 countries and regions around the world, including India, Brazil, Russia, Chile, Turkey, Ukraine, united Arab Emirates, Spain, Mexico, etc. Contact us for a free quote.
Hebei Hengxiang Engineering Materials Co., Ltd is an integrated enterprise specializing in the research and development, production, installation, maintenance and leasing of Suspended Platform, Scaffolding, Container Houses.
