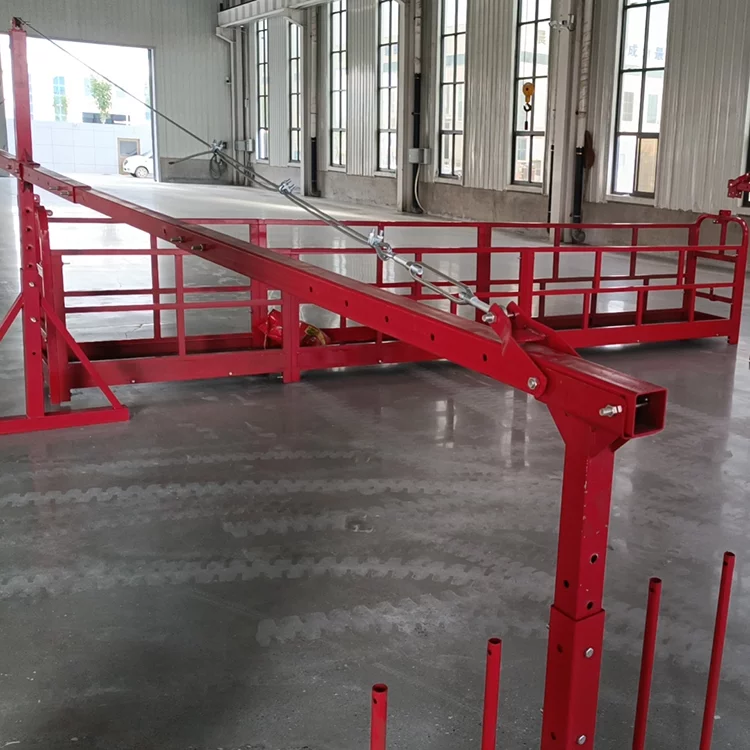

Hengxiang suspended working platform ZLP500 is made of high quality steel. Our ZLP series suspended platform cradles have obtained ISO9001: 2000, CE and EAC certification. Hengxiang designs and produces suspended platform with a primary focus on a safe work environment for end users.
In addition to the ZLP series of swing stage scaffolding, we also provide customers with customized service of building gondola lift platform, designing and producing non-standard gondolas according to customers’ needs.
| MODEL NUMBER | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
| Rated Capacity(kg) | 1000 | 800 | 630 | 500 |
| Lifting Speed(m/min) | 8-10 | 8-10 | 9-11 | 9-11 |
| Rated Power(KW) | 2.2×2 | 1.8×2 | 1.5×2 | 1.1×2 |
| Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 |
| Safety Lock Model | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 |
| Dimension of platformL *W * H(mm) | 7500*690*1180 | 7500*690*1180 | 6000*690*1180 | 5000*690*1180 |
| Suspension mechanism weight(kg) | 250 | 250 | 250 | 250 |
| Counterweight(kg) | 1250 | 1000 | 800 | 750 |
| Steel Suspension Platform weight(kg) | 700 | 600 | 500 | 400 |
| Aluminum Suspension Platform weight(kg) | 590 | 440 | 340 | 290 |
| Note: Suspended platform including hoist, safety lock, electric control panel. | ||||
The ZLP 500 suspended platform is mainly used in exterior wall maintenance, decorating and cleaning of high building, such as window glass cleaning, wall coating and painting. It can also be used for building or repairing of ship, big vessels, bridges, chimneys, dams, etc.
Hebei Hengxiang Engineering Materials Co., LTD. is a manufacturer and exporter of construction gondola, scaffolding and other construction equipment. The suspended platforms, electric scaffolding, frame scaffolding, adjustable steel props, and folding container house, are our hot selling products.
The ZLP series suspended working platforms are high quality with ISO, CE and EAC certification. Our factory can also supply gondola customization service according to clients’ requirement.
