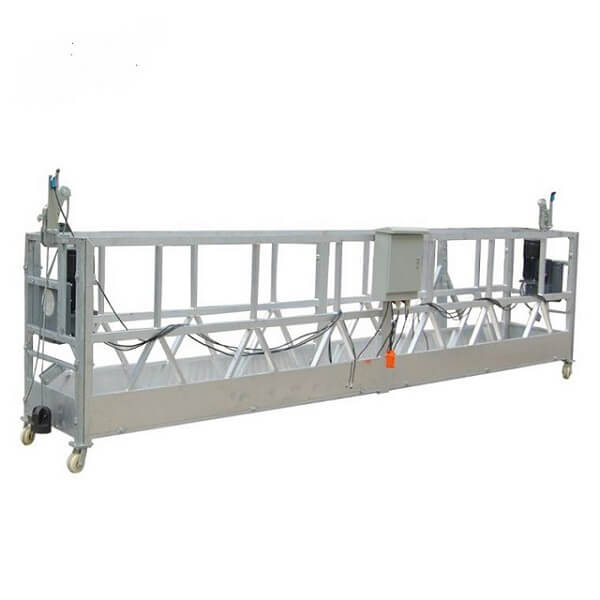

ZLP1000 construction suspended platform, electric cradle, temporary gondola

ZLP1000 construction suspended platform, also known as suspended scaffolding, electric cradle or temporary gondola, is a specialized lifting equipment for high-rise building facade maintenance, decoration, cleaning, such as window cleaning, curtain wall installation, etc.

Hengxiang manufactures and supplies suspended work platform with good quality and superior services. Our company has a wide range of ZLP suspended platform and non-standard suspended access equipment. Our factory can design and produce a variety of specifications of the hanging platform. Electric suspended platforms are generally known as high-altitude exterior window washing scaffolding.

ZLP1000 construction suspended platform specifications

MODEL NUMBER	ZLP1000
Rated Capacity(kg)	1000
Lifting Speed(m/min)	8-10
Rated Power(KW)	2.2×2
Hoist Model	LTD100
Safety Lock Model	LSA30/LSA20
Dimension of platform L x W x H(mm)	7500x690x1180
Suspension mechanism weight(kg)	250
Counterweight(kg)	1250
Steel Suspension Platform weight(kg)	700
Aluminum Suspension Platform weight(kg)	590

Important components and features of temporary suspended platform

1. 2 types of materials: (1)Aluminum alloy; (2)steel(Hot dipping zinc or galvanized)
2. Hoist: with famous brand of electric hoist, accomplish the climbing movement with the help of reducing mechanism and rope rolling mechanism, a centrifugal speed limiter is assembled to realize manual operation smooth landing.  it is with high density of body, high intensity, impact resistance and wear resistance. The accident rate is low and the service life is long.
3. Electric control box: The stainless steel electrical panel box is used for the control of up and down movements of the building gondola. The main elements are mounted onto an isolated plate, and the universal switch, power indicator light, starting button and emergency stop button are fixed on the panel.
4. Safety system:
   (1) Service brake incorporated in the LTD hoist.
   (2) Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
   (3) Two upper limit switches.
   (4) Non-Power descent function in case of power failure.
   (5) Emergency stop.
   (6) Phase controller. (Option)
   (7) Safety lock: LSG20/LSG30 Model, anti-tilt safety lock.
   If the suspended platform tilts due to a break in the working wire rope or a fall of one end, it automatically locks the safety wire rope to prevent the suspended platform from falling. The suspended access system is equipped with two safety locks, one mounted on the upper part of the hoist bracket at each end of the suspended platform.
5. Limit Switch: As a safeguarding appliance for the construction lifter.
6. Steel wire rope: the steel cable is used in the temporary installation of suspended access cradles, window cleaning scaffolding and manual hoisting equipment.

Application of suspended platform cradle

1. Facades maintenance, decoration, painting and cleaning of high building
2. Window cleaning, installation, fixing of high-rise building
3. Construction inspection and maintenance of big-size tanks, chimneys ,dams, bridges
4. Maintenance, repairing, cleaning of large ships

About Hengxiang – Construction gondola manufacturer and supplier

Hebei Hengxiang Engineering Materials Co., Ltd. is one of the leading suspended platform manufacturers and suppliers in China. Our factory is established in 2008, and has advanced production equipment, as well as scientific production technology and strict inspection standards.

Our main products are electric suspended platforms and related accessories, scaffolds, adjustable steel props, etc.  What’s more, the ZLP serious suspended platform and accessories have obtained ISO and CE international certification.

In addition to ZLP1000 suspended work platform, the ZLP630 suspension platform and ZLP800 electric suspended cradle are also our best-selling products. In order to meet the different needs of customers with different applications, we can also provide non-standard gondola customized services for customers.

Our products are exported to many countries and regions in the world, including India, Russia, Chile, Italy, Mexico, Ukraine and so on. You can always be confident to Hengxiang. If you have any purchase plan, please feel free to contact us.

Our professional sales will reply you as soon as possible, provide the latest prices. According to the actual needs of customers, provide more professional and thoughtful procurement scheme and technical support.
