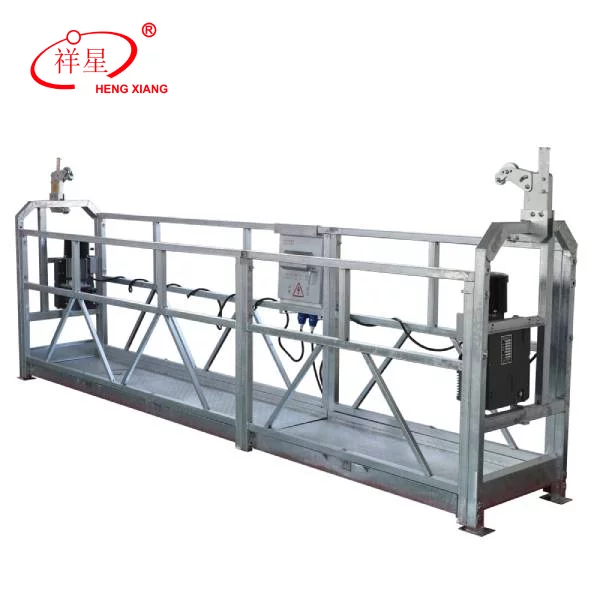

ZLP800 electric suspended platform aluminum alloy

ZLP800 electric suspended platform aluminum alloy is an ideal temporarily lifting equipment which can transport works and tools to work sites at any height. Electric suspended platforms,  as the name suggests, are driven by the electric hoist and steel wire rope. The lifting movement of the electric construction gondola is realized by alternately lifting the movable frame and the fixed frame by electric reverse chain.

Hengxiang has a wide range of suspended access equipment with various specifications. ZLP800 suspended platform cradle is one of our best-selling products. In addition, we also produce and supply ZLP250, ZLP500, ZLP630, ZLP1000 suspended work platform. Non-standard electric suspended platform customization is available according to customers’ demand. Our suspended working platform can be made in steel and aluminum alloy.

ZLP800 electric suspended platform specifications

MODEL NUMBER	ZLP800
Rated Capacity(kg)	800
Lifting Speed(m/min)	8-10
Rated Power(KW)	1.8×2
Hoist Model	LTD80
Safety Lock Model	LSA30/LSA20
Dimension of platform: L x W x H(mm)	7500x690x1180
Suspension mechanism weight(kg)	250
Counterweight(kg)	1000
Steel Suspension Platform weight(kg)	600
Aluminum Suspension Platform weight(kg)	440

Important components of electric cradle

• Suspension Mechanism/Parapet clamp
• Working Platform
• LTD Series Hoist
• LSB Safety Lock
• Electric Control Box
• Steel Wire Rope

Product features of ZLP800 electric suspended platform aluminum alloy

1. The length of workingplatform can be adjusted from 1M to 12M.
2. Convenient and reliable electric control system: Different power supply are acceptable from 220v to 480v, 50/60Hz,Single or three phases.
3. Simplestructure, and durable working performance
4. Working height can be adjusted according to actual demandfrom 0-200m
5. Multiple materialsoptions: aluminum alloy or steel
6. finish treatment: power coated, hot galvanized
7. Good quality steel wire rope
8. CE & ISO international certified manufacturer
9. OEM Solutions supported
10. Factory directly sale with low cost control and high quality parts

Electric suspended platform applications

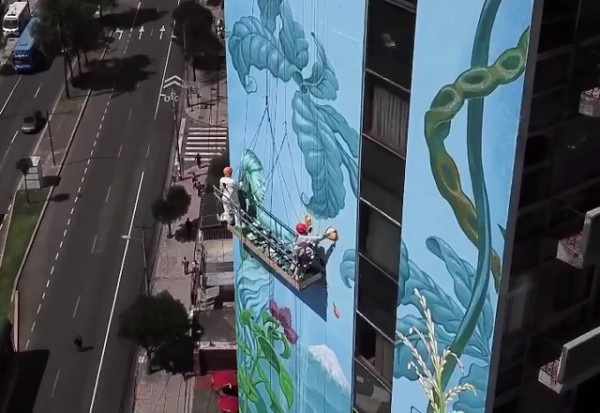

• Painting and decorating, refurbishing, repairs, windows cleaning of high-rise building
• Curtain wall installation
• Large tanks, bridges, dams and other construction operations

About Hengxiang Engineering Material Co., LTD.

As a leading suspended platform manufacturer and exporter in China, Hebei Hengxiang always pays attention to product safety and quality. We have an experienced design team, and our electric gondolas have obtained ISO9001:200 and CE international certification. You can always be confident with our products. If you are interested in our gondolas, or have purchase plan, please feel free to contact us. We will provide the latest quotations of the suspended platform.
