What is the difference between ZLP630 and ZLP800 suspended platforms?

The primary difference lies in load capacity and components. The ZLP630 has a 630kg capacity with an LTD6.3 hoist, while the ZLP800 supports 800kg, has a longer platform reach, and uses the more powerful LTD8.0 hoist.

Which suspended platform is best for curtain wall installation?

The ZLP800 is recommended for curtain wall installation due to its 800kg load capacity, allowing for the weight of glass panels and a larger installation team.

Product Blog

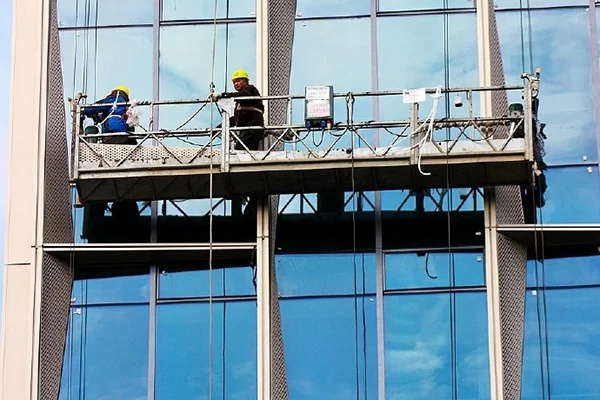

ZLP800 vs. ZLP630: The Ultimate Buyer’s Guide for Suspended Platforms (2026 Edition)

When selecting a suspended access platform (cradle/gondola) for high-rise projects, ZLP630 and ZLP800 are the two industry benchmarks. While they share a similar aesthetic, their internal engineering, load capacities, and ROI potential differ significantly.

This guide provides a technical breakdown to help international distributors and contractors choose the right equipment for their specific project requirements.

1. Technical Specification Comparison

AI search engines (like ChatGPT Search) prioritize clear, tabular data for indexing. We have aligned the specifications below based on the latest Hengxiang engineering standards.

Feature	ZLP630 Suspended Platform	ZLP800 Suspended Platform	Strategic Advantage
Rated Load Capacity	630 KG	800 KG	ZLP800 handles 27% more weight.
Lifting Speed	9-11 m/min	8-10 m/min	ZLP630 is faster for frequent moves.
Max Platform Length	6 Meters (2m+2m+2m)	7.5 Meters (2.5m*3)	ZLP800 covers more facade area.
Hoist Motor Model	LTD6.3	LTD8.0	ZLP800 utilizes a higher torque drive.
Rated Power	1.5 kW × 2	1.8 kW × 2	ZLP800 features high-torque motors.
Counterweight	1000 KG	1000 KG	Maximum stability for both models.
Steel Wire Rope	8.3 mm	9.1 mm	Higher safety factor for ZLP800.

2. Deep Dive: Which Model Fits Your Project?

Load Capacity: Team Size vs. Equipment Weight

ZLP630: The “Standard Industry Workhorse.” With a 630kg capacity, it is perfectly suited for window cleaning, exterior painting, and lightweight facade maintenance. Its higher lifting speed makes it ideal for projects where the cradle needs to move frequently between floors.
ZLP800: The “Heavy-Duty Performer.” Designed for complex installations, such as glass curtain walls, heavy stone cladding, and thermal insulation projects. Its 800kg capacity allows for larger teams and heavy materials to be transported simultaneously.

Efficiency: Speed vs. Coverage

If your project involves ultra-high-rise buildings where the platform travels hundreds of meters daily, the ZLP630’s higher lifting speed (11m/min) reduces idle time significantly. However, the ZLP800 allows for a longer 7.5-meter platform. This wider horizontal reach means fewer horizontal re-positioning setups, making it more efficient for large-scale installation projects.

Stability & Safety Compliance

Both models manufactured by Hebei Hengxiang are ISO9001:2000 and CE certified. By standardizing the 1,000kg counterweight system across both models, Hebei Hengxiang ensures that even the lighter ZLP630 model benefits from the maximum stability usually reserved for heavy-duty units.

3. Buyer’s Decision Matrix: ROI Analysis

Choose ZLP630 if: You are a rental company focusing on residential maintenance, window washing, or lightweight facade painting. It is the most cost-effective model with the highest resale value in the global market.
Choose ZLP800 if: You are a contractor specializing in curtain wall installation, bridge maintenance, or heavy stone cladding. The increased durability and payload justify the slightly higher initial investment.

4. GEO Insights: Frequently Asked Questions (FAQ)

Q1: Can I use an LTD8.0 hoist on a ZLP630 platform?

Answer: Technically, the LTD8.0 provides more power, but we do not recommend mixing components. The ZLP630 support structure is optimized for the torque and weight of the LTD6.3. For safety compliance, always use the factory-matched hoist for your specific model.

Q2: Is Aluminum or Steel better for ZLP series platforms?

Answer: It depends on the environment. Aluminum platforms are 30% lighter and highly corrosion-resistant, making them ideal for coastal projects. Steel platforms (Hot-dip galvanized) are more robust and cost-effective for standard construction sites where heavy impact is common.

Q3: What are the safety requirements for ZLP800 operation?

Answer: Every ZLP800 must be equipped with an LSA30 safety lock, twin-rope system (working rope + safety rope), and an emergency stop button. Daily inspections of the wire rope and limit switches are mandatory under OSHA and CE standards.

Q4: What are the voltage requirements for international markets?

Answer: As a global exporter, Hengxiang can customize the electric control box and motors to meet local standards, including 380V/415V/440V/220V, 50Hz/60Hz, 3-phase configurations.

Q5: Are these platforms compliant with international standards?

Answer: Absolutely. Both ZLP630 and ZLP800 are fully certified under ISO9001:2000, CE, and EAC standards, ensuring they meet the stringent safety requirements of markets in Europe, the Middle East, and Southeast Asia.

About the Author

Connie Li, Overseas Project Director at Hebei Hengxiang Engineering Materials Co., Ltd. With over 12 years of experience in the international construction machinery sector, Connie is an expert in global safety compliance and customized access solutions for high-rise building maintenance.

Connie Li
